The Evolution and Design Principles of Steel Frame Roofs

Steel frame roofs have become an integral part of modern architecture and construction, celebrated for their durability, flexibility, and the ability to span large distances without the need for intermediate supports. This article delves into the design principles, advantages, applications, and future trends associated with steel frame roofs.

Understanding Steel Frame Roofs

At its core, a steel frame roof is a structural system in which steel framework supports the roofing materials. This design approach allows for significant flexibility in architectural design while ensuring structural integrity. The framing typically consists of steel beams, columns, and trusses, providing a robust skeleton that can support various roofing materials, from metal sheets to tiles, depending on the aesthetic and functional requirements.

Design Principles

1. Load-Bearing Capacity One of the primary considerations in steel frame roof design is the ability to bear loads. This includes dead loads (the weight of the roof structure itself), live loads (the weight of occupants, equipment, and furniture), and environmental loads (such as snow, wind, and seismic activity). Engineers use rigorous calculations and simulations to ensure that the design can withstand these forces.

2. Material Selection The choice of steel types is crucial in design. Common materials include carbon steel, stainless steel, and weathering steels, each with unique properties that influence durability, corrosion resistance, and cost. The design must also account for varying thicknesses and profiles to enhance strength without adding unnecessary weight.

3. Structural Stability Steel frames must be designed to prevent buckling and lateral-torsional buckling, especially in large span conditions. The incorporation of bracing systems, such as X-braces or diagonal struts, helps to maintain stiffness and stability under load.

4. Thermal Expansion Steel expands and contracts with temperature changes, which can lead to structural issues if not considered. Expansion joints are often incorporated into the design to accommodate movement without compromising the roof's integrity.

1. Versatility Steel frame roofs can adapt to various architectural designs, making them suitable for a multitude of building types, from industrial warehouses to commercial complexes and residential homes.

2. Speed of Construction The prefabrication of steel components allows for quicker assembly on-site, reducing labor costs and project timelines. This efficiency is particularly advantageous in urban settings where time constraints are critical.

3. Longevity and Low Maintenance Steel is known for its durability and resilience under harsh weather conditions. When properly treated and maintained, steel frame roofs can last for several decades, requiring minimal maintenance compared to traditional roofing materials.

4. Sustainability Steel is one of the most recycled materials globally, allowing for eco-friendly construction practices. Additionally, modern coatings and treatments can enhance the lifespan and energy efficiency of steel components.

Applications

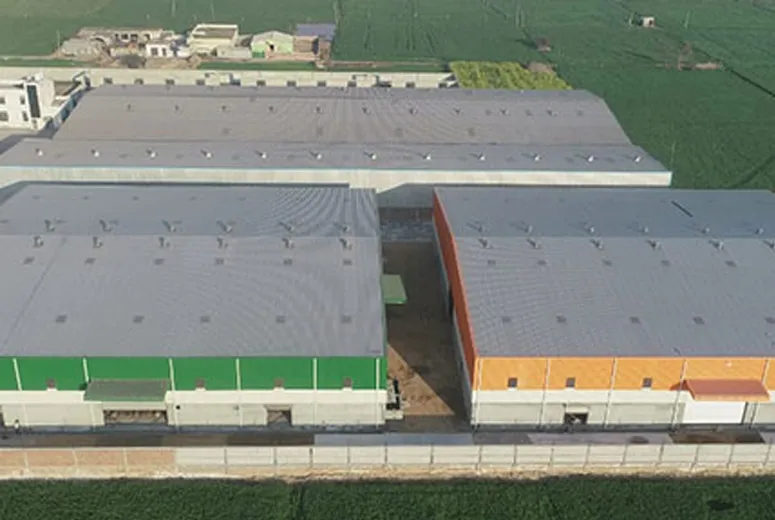

Steel frame roofs are commonly used in commercial buildings, warehouses, factories, and residential constructions. Their ability to support large spans makes them ideal for auditoriums, sports facilities, and exhibition centers. In addition, they provide opportunities for innovative architectural features, such as skylights and dynamically shaped roofs.

Future Trends

As technology continues to evolve, the design of steel frame roofs is also advancing. The use of Building Information Modeling (BIM) is becoming standard practice, allowing for more precise and efficient design and construction processes. Moreover, innovations in material science are leading to stronger, lighter, and more corrosion-resistant steel options. The integration of sustainable practices, including green roofs and solar panel installations, is also becoming more common as environmental considerations gain prominence in architectural designs.

Conclusion

Steel frame roofs represent a significant advancement in construction technology, combining safety, durability, and versatility. As the industry continues to innovate, these systems are likely to play an increasingly vital role in the future of architecture, contributing to sustainable building practices and modern design aesthetics. The evolution of steel frame roof design not only exemplifies engineering prowess but also reflects the changing landscape of architectural possibilities in the 21st century.
